90-120kw Condensing Heat Exchanger

Floorflex Series 90-120kw condensing heat exchanger

1.Product Introduction

The design capacity about Floorflex series aluminium casting domestic condensing heat exchanger is from 90KW to 300KW. Aluminium casting commercial Condensing Heat Exchanger, consists of Left, Middle and Right Sections, is the main body component of the Condensing Boiler. The Floorflex series design is smart and applicable to heating and hot water supply for a large area such as hotel, school, hospital, etc, and is a new eco-friendly and energy-saving product promoted by various governments to replace non-condensing, coal, oil and electric water boilers.

2.Product Parameter (Specification)

FLOORFLEX
Type	5-L	6-L	7-L	8-L	Unit
Nominal Input	168	210	252	294	kw
Efficiency Load 30%	107	107	107.5	107.5	%
Operating Pressure	6	6	6	6	bar
L=412*H=880*L=	837	922	1006	1090	mm
Flue connection φ	200	200	200	200	mm
Weight	81.9	99.9	116.9	143.9
Certificate	CE/RoHs/ASME
Material	EN1706/AC43000

3.Product Feature And Application

Floorflex series 90kw to 300kw condensing heat exchanger is very compact, sustainable sectional boiler for industrial use. Manifolds are made from cast aluminium as well. Grain refinement, modification and density index need to be accurately controlled during melting to ensure that the tightness, structure, as well as the chemical and mechanical properties all meet the required ranges. Subsequently the process requires a 100% leak test, usually with air pressure or an hydraulic pressure test carried out by the foundry.

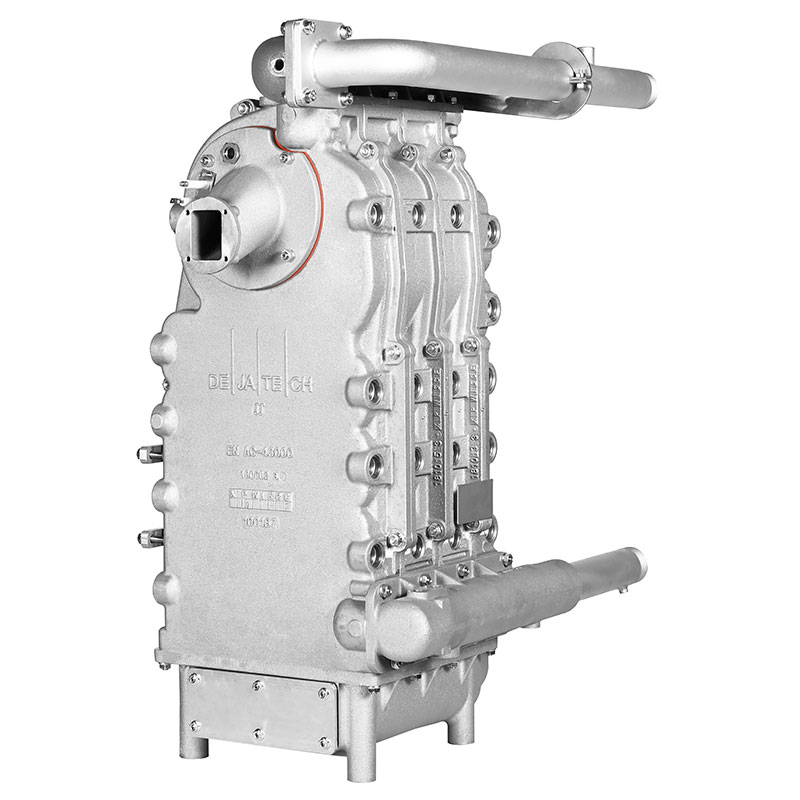

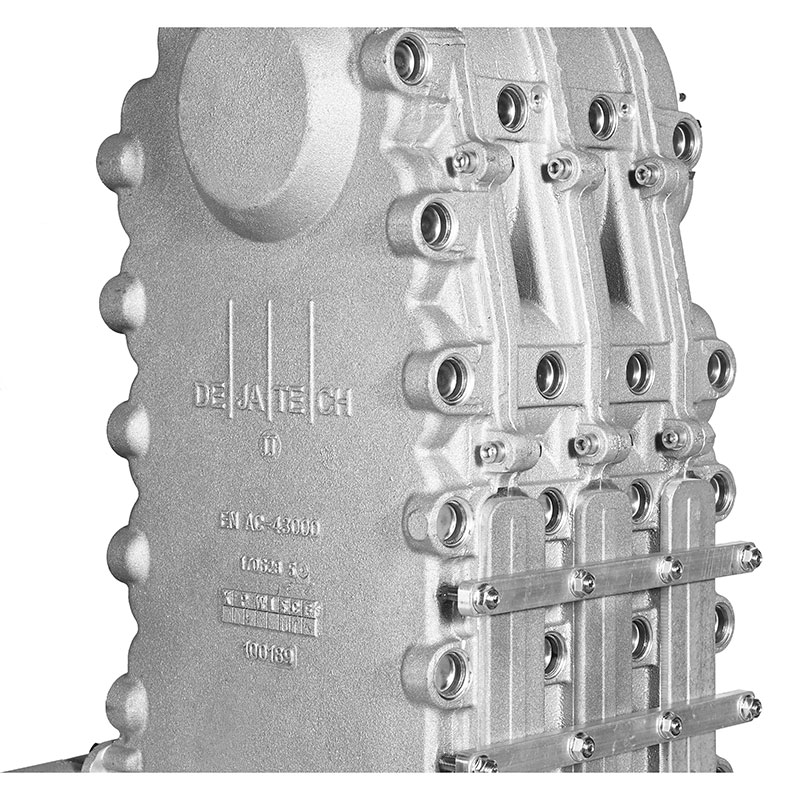

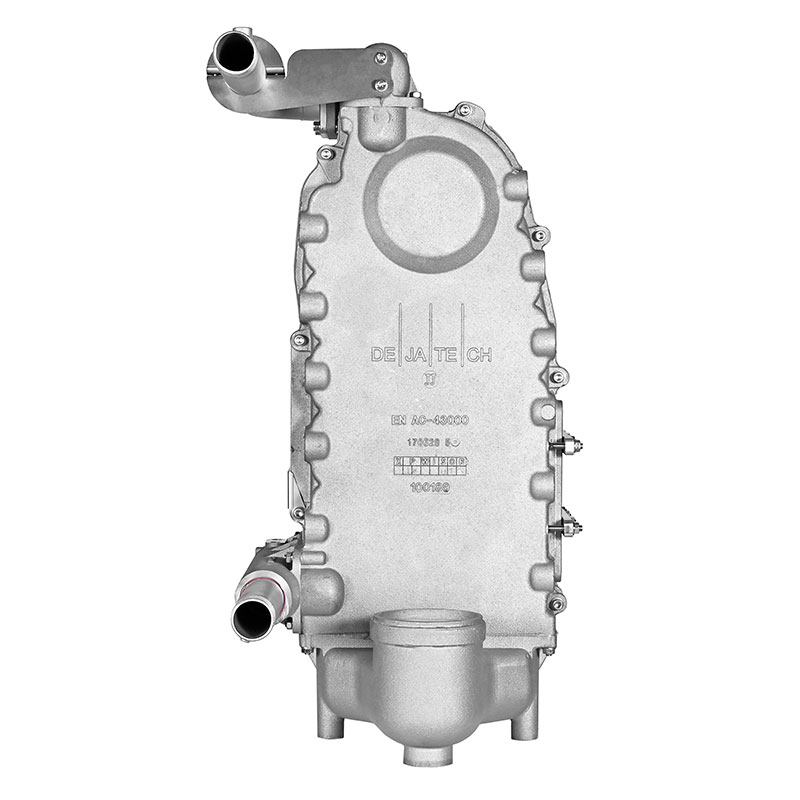

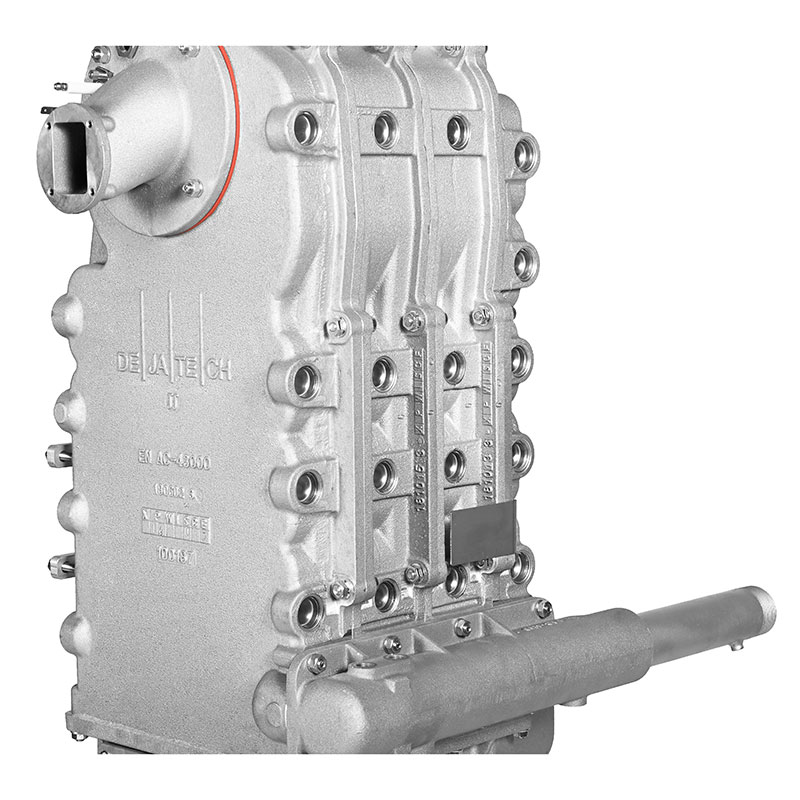

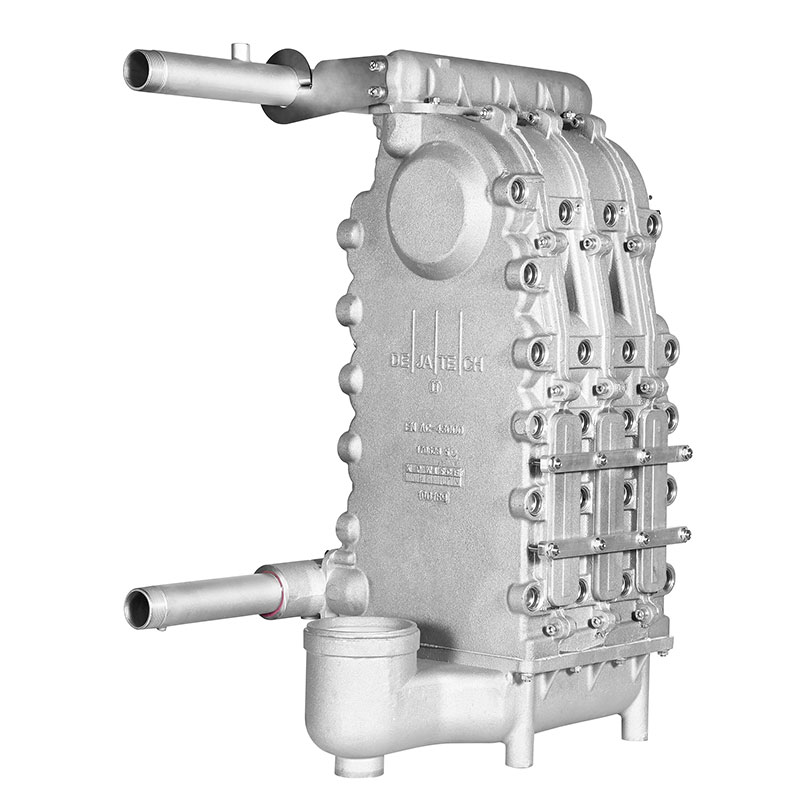

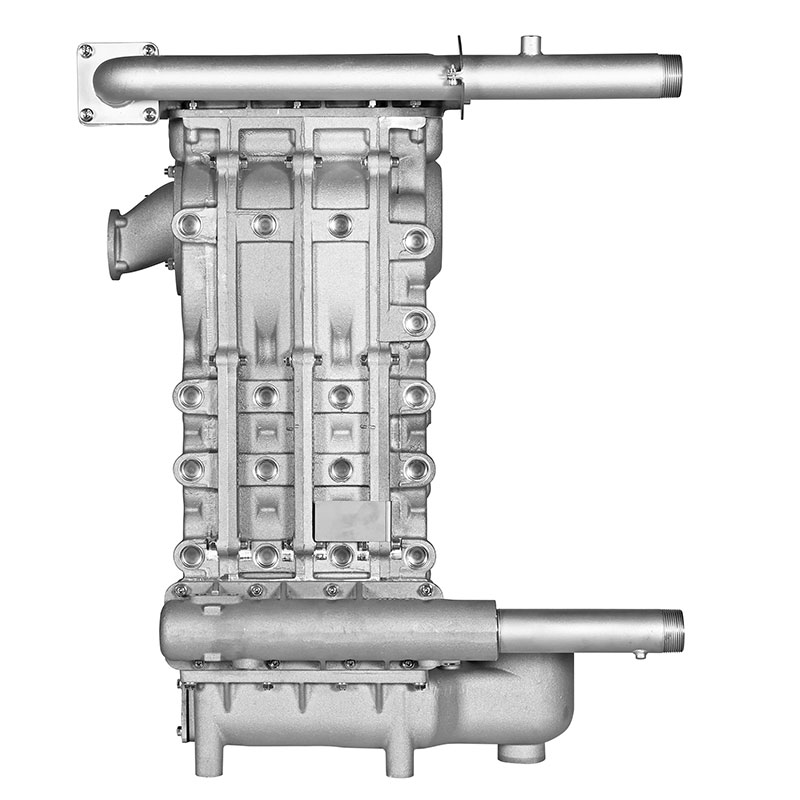

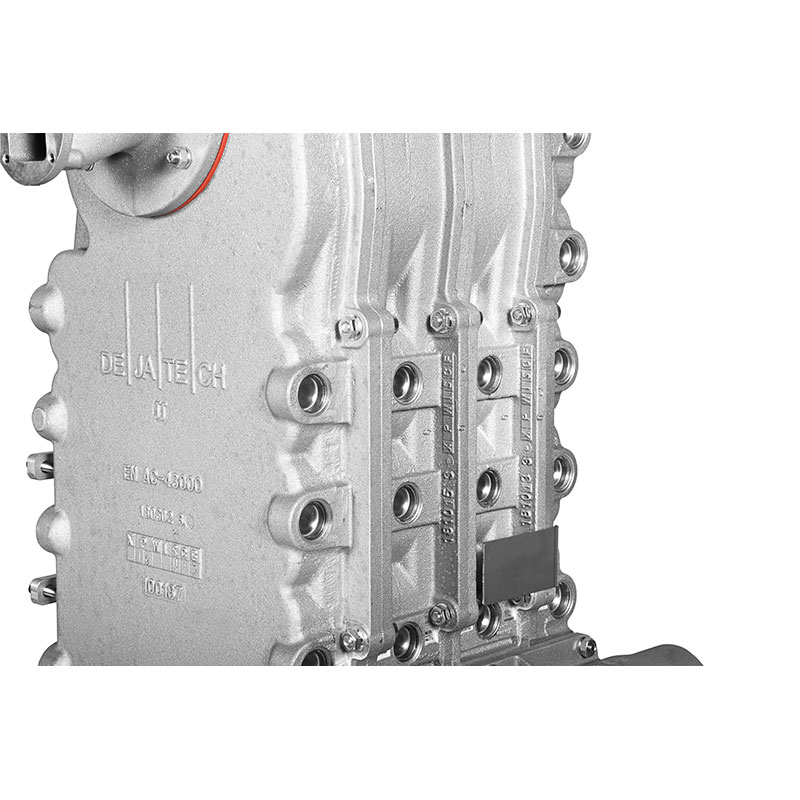

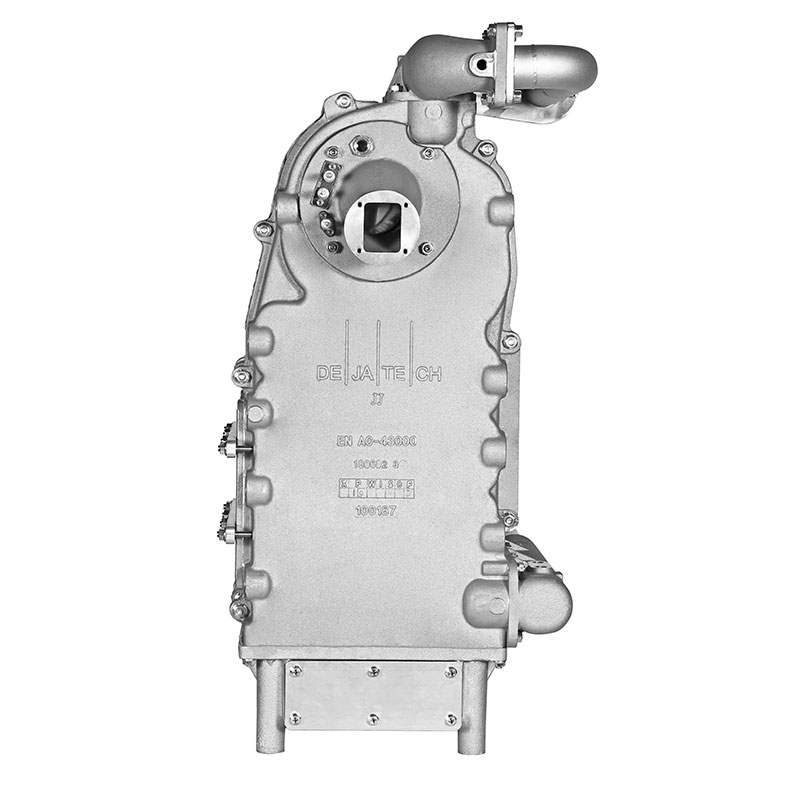

4.Product Details

Benefits:
Compact esthetic design.
Serial waterflow.
Low hydraulic pressure drop.
High modulation range possible.
Low pneumatic resistance.
High quality/price ratio.
Robust reliable design based on 30 years of developing experience.
Combustion chamber fully water cooled, no refractories needed.
Worgas burner inside.

DETAILS:

Typical quality control:

Certificate:
